步骤4：部署在线服务

最近更新时间：2021-06-07

1 创建在线服务

选择左侧“在线服务”，点击“创建服务”，弹出创建在线服务配置页面。在弹窗中填写服务名称如：

  • inference-mnist

服务配置中，“添加”服务配置如下：

  • 模型：model-mnist，v0.0.1版本

  • 流量比例：100%

  • 资源池：公共资源池

  • 资源套餐：CPU_4核8GiB

  • 副本数：1

点击“确认”后，等待服务部署完成，直到服务状态为“运行中”表示服务部署成功，可以响应请求。

2 准备预测图片

预测图片是一张从测试集中随机选择的手写数字“1”。如图所示：

将此图片转化成28x28的像素矩阵图片。然后使用numpy转化成预测服务可识别的784维数组。转化numpy数组代码示例如下：

import cv2 as cv
import numpy as np
np.set_printoptions(threshold=np.inf)

img = cv.imread('minisit-1.jpg', 0)  # 读取图片
img1 = img / 255               # 归一化

fname = open('minist-1.1.txt', 'w')  # 数组存储的文件
Xlenth = img1.shape[1]  # 图片列数
Ylenth = img1.shape[0]  # 图片行数
for i in range(Ylenth):
    for j in range(Xlenth):
        if i < Ylenth-1:
            if i == 0:
                if j == 0:
                    fname.write('['+ str(img1[i][j].tolist()) + ',')
                else:
                    fname.write(str(img1[i][j].tolist()) + ',')
            else:
                fname.write(str(img1[i][j].tolist()) + ',')
        else:
            if j < Xlenth-1:
                fname.write(str(img1[i][j].tolist()) + ',')
            else:
                fname.write(str(img1[i][j].tolist()) + ']')
fname.close()

此数组用于组装Body用于向在线服务发送请求。

3 发送预测请求

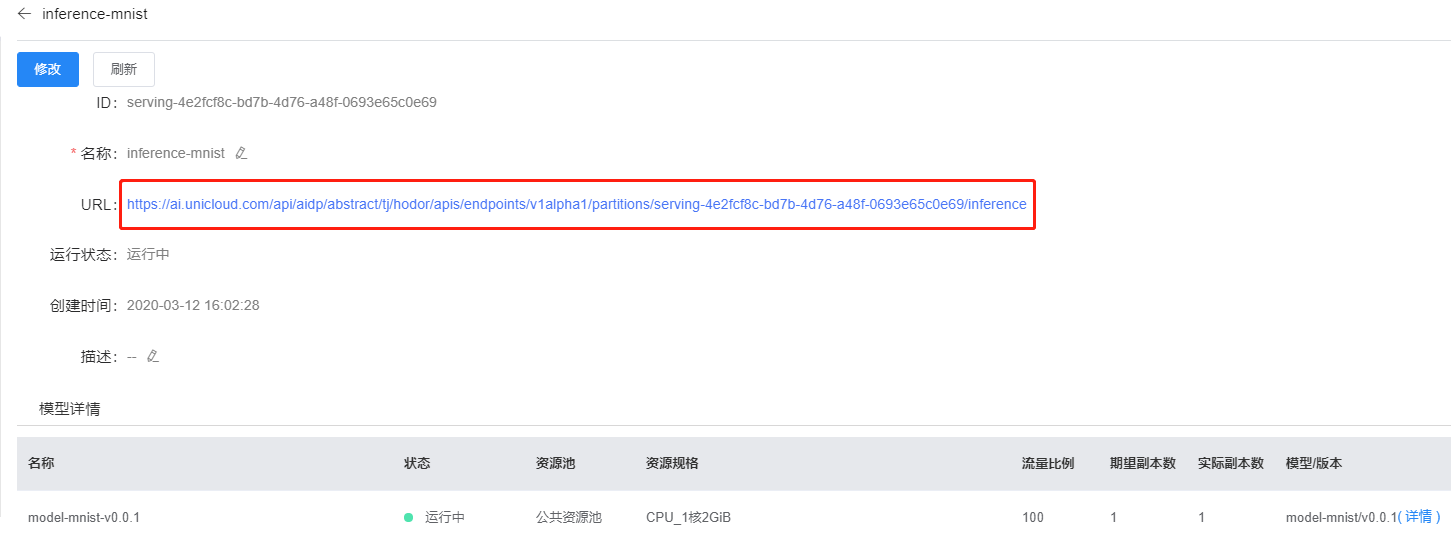

在服务列表中，得到在线服务访问的url。

使用postman发送请求，需要使用您的ak/sk完成签名，获取签名的代码请参考SignatureUtil.java，请求方式如下。

3.1 请求方式

3.2 请求参数

Params如下：

参数值说明
AccessKeyIdAccess Key值ak值
Signature签名值ak/sk生成的签名，获取签名的代码请参考SignatureUtil.java

Body如下：

{
    "inputs": {
        "myInput": [[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.011764705882352941,0.0,0.00392156862745098,0.0,0.0,0.0,0.00784313725490196,0.0,0.0196078431372549,0.0,0.0,0.0,0.0,0.011764705882352941,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.011764705882352941,0.0,0.00784313725490196,0.00784313725490196,0.0,0.00784313725490196,0.0,0.0,0.00784313725490196,0.00392156862745098,0.011764705882352941,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00784313725490196,0.00784313725490196,0.0,0.0,0.0,0.0,0.00784313725490196,0.0,0.011764705882352941,0.011764705882352941,0.011764705882352941,0.0,0.00784313725490196,0.00784313725490196,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00392156862745098,0.0196078431372549,0.00392156862745098,0.00392156862745098,0.0,0.011764705882352941,0.0,0.00392156862745098,0.0,0.0,0.023529411764705882,0.0,0.0,0.011764705882352941,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00784313725490196,0.0,0.0,0.01568627450980392,0.00392156862745098,0.0,0.00392156862745098,0.0,0.0,0.0,0.01568627450980392,0.0,0.00784313725490196,0.0,0.0,0.00784313725490196,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.011764705882352941,0.0,0.0,0.0,0.03137254901960784,0.3058823529411765,1.0,0.6823529411764706,0.054901960784313725,0.0,0.0,0.00784313725490196,0.00392156862745098,0.00392156862745098,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.01568627450980392,0.0,0.0,0.00392156862745098,0.00392156862745098,0.06666666666666667,0.8862745098039215,0.9803921568627451,0.984313725490196,0.09019607843137255,0.00784313725490196,0.0,0.00392156862745098,0.0,0.00392156862745098,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00392156862745098,0.0,0.011764705882352941,0.0,0.6313725490196078,0.9882352941176471,1.0,0.984313725490196,0.09019607843137255,0.0,0.00392156862745098,0.00784313725490196,0.0,0.0,0.00784313725490196,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.023529411764705882,0.0,0.0,0.00392156862745098,0.6549019607843137,0.996078431372549,0.9921568627450981,0.9882352941176471,0.08627450980392157,0.0,0.00392156862745098,0.0,0.00392156862745098,0.0,0.00784313725490196,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.01568627450980392,0.0,0.043137254901960784,0.807843137254902,0.9803921568627451,0.9921568627450981,0.8431372549019608,0.058823529411764705,0.0,0.0,0.00784313725490196,0.0,0.00392156862745098,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00784313725490196,0.0,0.0,0.00392156862745098,0.1450980392156863,0.996078431372549,0.9882352941176471,0.984313725490196,0.7215686274509804,0.023529411764705882,0.00784313725490196,0.0,0.011764705882352941,0.0196078431372549,0.0,0.00784313725490196,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.5058823529411764,0.9803921568627451,0.9882352941176471,1.0,0.8745098039215686,0.06274509803921569,0.0,0.0196078431372549,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00784313725490196,0.0,0.10980392156862745,0.996078431372549,0.9764705882352941,0.9686274509803922,0.25882352941176473,0.0,0.0,0.01568627450980392,0.0,0.0,0.03529411764705882,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00784313725490196,0.0,0.0,0.00392156862745098,0.08235294117647059,0.9921568627450981,0.996078431372549,0.8352941176470589,0.0,0.00392156862745098,0.0,0.0,0.011764705882352941,0.00784313725490196,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.011764705882352941,0.0,0.0,0.10196078431372549,0.9764705882352941,0.9803921568627451,0.9058823529411765,0.09803921568627451,0.0,0.00784313725490196,0.00392156862745098,0.0,0.011764705882352941,0.00784313725490196,0.00784313725490196,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00392156862745098,0.07058823529411765,1.0,0.9921568627450981,0.8156862745098039,0.00392156862745098,0.00392156862745098,0.00392156862745098,0.0,0.00784313725490196,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00392156862745098,0.0,0.0,0.00784313725490196,0.07450980392156863,0.9921568627450981,0.9921568627450981,0.8274509803921568,0.0,0.0,0.00392156862745098,0.0,0.011764705882352941,0.00392156862745098,0.00392156862745098,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.011764705882352941,0.08235294117647059,0.9882352941176471,0.9803921568627451,0.9803921568627451,0.23137254901960785,0.011764705882352941,0.0,0.00392156862745098,0.0,0.0,0.01568627450980392,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00784313725490196,0.0,0.0,0.09019607843137255,0.9882352941176471,0.9764705882352941,1.0,0.25098039215686274,0.0,0.00784313725490196,0.0,0.011764705882352941,0.0,0.0,0.00392156862745098,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.09411764705882353,0.9882352941176471,1.0,0.984313725490196,0.596078431372549,0.01568627450980392,0.0,0.0,0.0,0.0,0.00784313725490196,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00784313725490196,0.00784313725490196,0.08235294117647059,0.9803921568627451,0.9882352941176471,1.0,0.6470588235294118,0.0,0.0,0.00784313725490196,0.0,0.0,0.0,0.00392156862745098,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00392156862745098,0.0,0.0,0.0,0.08627450980392157,1.0,0.9647058823529412,0.9921568627450981,0.6509803921568628,0.0196078431372549,0.00392156862745098,0.0,0.011764705882352941,0.01568627450980392,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.08235294117647059,0.9686274509803922,1.0,0.9921568627450981,0.6705882352941176,0.0,0.0,0.011764705882352941,0.0,0.0,0.011764705882352941,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00784313725490196,0.0,0.0,0.011764705882352941,0.0196078431372549,0.7647058823529411,0.9882352941176471,0.9882352941176471,0.5568627450980392,0.0,0.00392156862745098,0.0,0.00392156862745098,0.0,0.00392156862745098,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.011764705882352941,0.0,0.0,0.00392156862745098,0.3137254901960784,0.9921568627450981,0.8470588235294118,0.027450980392156862,0.011764705882352941,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.01568627450980392,0.0,0.011764705882352941,0.0,0.0,0.00392156862745098,0.00784313725490196,0.0,0.011764705882352941,0.00392156862745098,0.0,0.0,0.00392156862745098,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.01568627450980392,0.0,0.0,0.00392156862745098,0.0,0.0,0.0,0.0,0.00392156862745098,0.0,0.0,0.0,0.00392156862745098,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.00392156862745098,0.0,0.0,0.00784313725490196,0.0,0.0,0.0,0.0,0.0,0.00392156862745098,0.00392156862745098,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0]]
    }
}

Body中的myInput就是手写数字"1"的numpy数组。

图中看到预测结果是一个长度为10的置信度数组，其中第二个标签的置信度最高。手写数字MNIST数据集的标签为0-9，所以预测结果为1，预测结果正确。

4 停止在线服务

在“在线服务”列表页，点击操作列的“停止”按钮，停止在线服务。

至此，我们完成了准备数据/文件->训练->模型管理->预测，整个AI开发流程的体验。更多详细操作请参考用户指南。
